Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range

  • 1
  • 2

Brand Name : HWASHI

Model Number : WL-TSP-MF150K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 50 sets per month

Delivery Time : 30 working days after received your payment

Packaging Details : Sea worthy wooden package or PVC Film for FCL

Application : Mesh Product

Size : According to your product

Weight (KG) : According to your product

Condition : New

Warranty : 1 Year

Standard : CE

Welding material : Iron wire

Contact Now

HWASHI High Quality Automatic Steel Wire Mesh Welding Machine
Product Overview
HWASHI Best price Wire Basket / Wire Shelves / Wire Rack Welded Wire Mesh Welding Machine
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Key Features
  • Multiple welding electrodes for increased productivity
  • Manual wire loading with automatic feeder and welding
  • Double power supply system for reliable operation
  • Two electrodes can work simultaneously and take turns
  • Double-layer feeder for continuous loading and uninterrupted operation
  • High efficiency and cost-effective performance
  • Suitable for wire mesh up to 1200mm width with unlimited length
Advanced System Components
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Intelligent welding control system - Automatic welding by inputting coordinate data of welding position, welding current and other parameters
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Special product molds welding platform - Custom processing and production according to each mesh product size
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
X.Y axis moving device - Automatic movement of workpiece mold along X and Y axes, requiring only manual swinging and removal
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Single head long arm type welding - Customizable double row or multi-row welding heads based on workpiece requirements
Technical Specifications
Model WL-TSP-100/150K
Input Power (V/φ) 380/3
Rated Power (KVA) 100/150
Applicable Material Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG) 250-400
Welding Thickness (MM) 1-5mm
Warranty 1 year
Mesh Welding Range 1000mm X 1000mm
XY Axis Automatic Moving Wire Welding Machine
The wire welding machine features a highly efficient servo motor-driven XY axis mold frame, utilizing a synchronous belt drive system. Controlled by the advanced control system, the machine enables precise control over the walking step length and speed. Once the manual material is securely fixed onto the mold frame, the switch is activated, and the industrial control computer takes charge. The product then undergoes automated welding as it alternately moves along the X and Y axes of the mold frame, seamlessly completing the welding process for each joint. Upon completion, the machine automatically returns to the origin without requiring additional manual intervention. This eliminates the need for additional personnel during the welding operation. Meanwhile, the operator can utilize the available time to set up the next material, optimizing efficiency and reducing labor costs. By effectively utilizing the welding time for material setup, the machine ensures maximum productivity and streamlines the overall workflow.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Complete Production Line Machines
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Wire Flattening and Cutting Machine
This machine processes round wire into flat wire with automatic feeding and cutting to required length. Typically processes 8mm wire coil into 12x3mm flat wire strips.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range

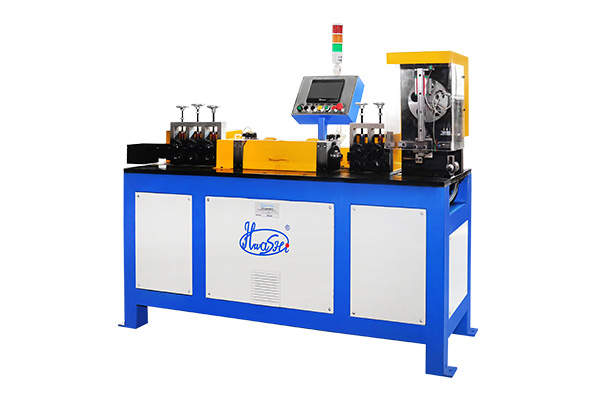

High Speed Wire Straightening and Cutting Machine
Batch production of 2mm to 4mm wires with speeds approximately 5 times faster than standard machines, increasing production rates and reducing labor costs.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Wire Frame Bending Machine
Bends flat or round wires into square-shaped wire frames, capable of bending multiple wires simultaneously to increase production rates.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range

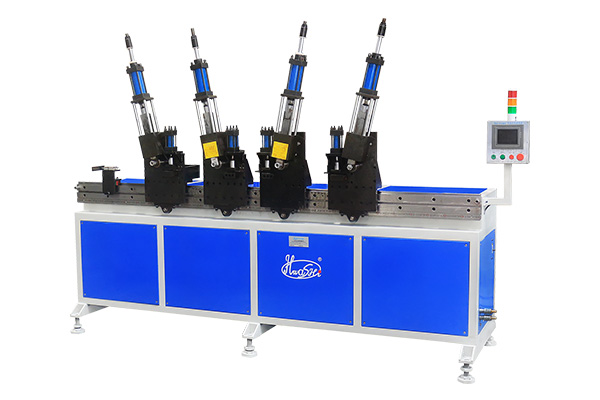

Wire Frame Butt Welding Machine
Welding head quantity depends on mesh welding width, with different welding heads capable of individual program and current settings.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Wire Frame Double T-Butt Machine
Welds cross bars of wire shelves to wire frames with double head design for increased production rates. Automatic moving and welding applications available.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Wire Edge Trimming Machine
Trims wire edges from wire frames after welding to create clean, smooth surfaces.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
2D Wire Handle Bending Machine
Bends wire handles for 2-6mm wires, capable of creating any shape without mold changes.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
3D Wire Bending Machine
Bends wires into 3D shapes for 2-6mm or 3-8mm wires, creating any 3D shape without mold changes.
